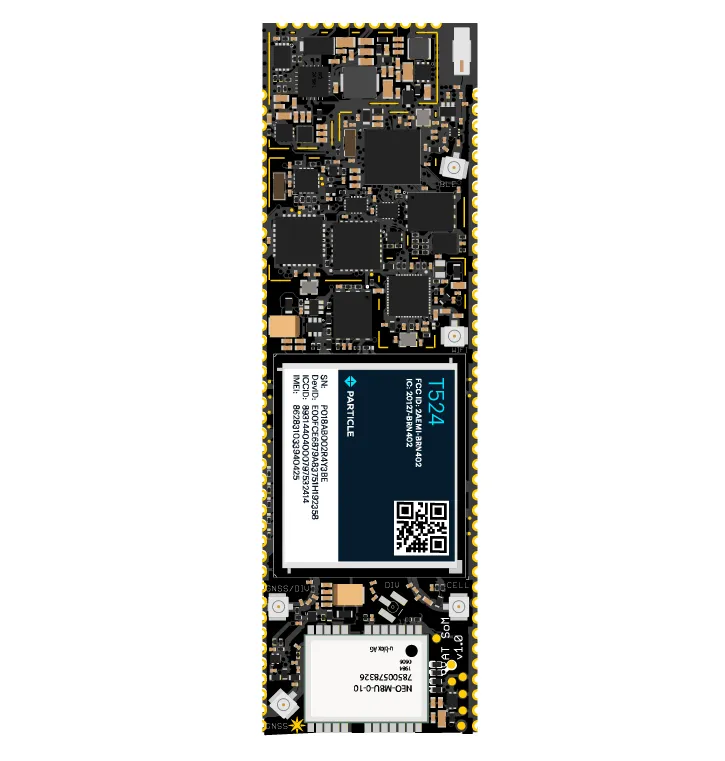

T SoM: The heart of your asset tracking solution

T SoM is a powerful, configurable, and extensible IoT System-on-Module (SoM) that provides a MCU, GNSS, and advanced peripherals in a compact form factor. T SoM works out-of-the-box with the Particle Tracking Services software suite that provides location, configuration, and edge application services to all Particle Tracker devices. Together, T SoM and Particle Tracking Services provide an accelerated starting point to organizations that require a tailored tracking solution for sophisticated applications as well as a fully-certified foundation for original equipment manufacturers developing commercial products.

What's included?

• T SoM
• Cellular Antenna (ANTCW2EA)

Technical Specifications

• Highly-reliable cellular connectivity with LTE CAT 1 connectivity for EMEAA deployments with 3G and 2G fallback
• GNSS (GPS) with onboard dead-reckoning
• Nordic Semiconductor nRF52840 SoC
  • ARM Cortex-M4F 32-bit processor @ 64MHz
  • 1MB flash, 256KB RAM in SoC
  • Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps
  • Supports DSP instructions, HW accelerated Floating Point Unit (FPU) and encryption functions
  • Up to 8 dBm TX power (down to -20 dBm in 4 dB steps)
  • NFC-A tag
• Wi-Fi location with SSID scanning for third-party Wi-Fi location services
• PMIC & Fuel Gauge: integrated power management, LiPo charger, and battery connector
• Onboard, integrated CAN Bus controller and transceiver for fleet management and micromobility applications
• I/O Expander: 1 x SPI, 1 x I2C, 1 x UART, and up to 6 x GPIO available
• USB 2.0 full speed (12 Mbps)
• GNSS clock and battery-backed RTC clock
• Integrated Watch-Dog Timer for whole system reset should a user application require it
• JTAG (SWD) pins
• Support for external RGB status LED
• Support for external Reset and Mode buttons
• On-module MFF2 Particle SIM
• Bluetooth chip antenna on module, switchable to use U.FL connector in software.
• Five on-module U.FL connectors for cellular, GNSS, BLE, Wi-Fi, and alternative GNSS.
• Castellated module designed to be reflow soldered to your own custom base board, or pre-populated on a Particle Evaluation Board or Carrier Board.
