Buy this hardware and start building with Particle's Free Plan which includes support for up to 100 devices, cellular data, and fully-featured platform access with no time limit.

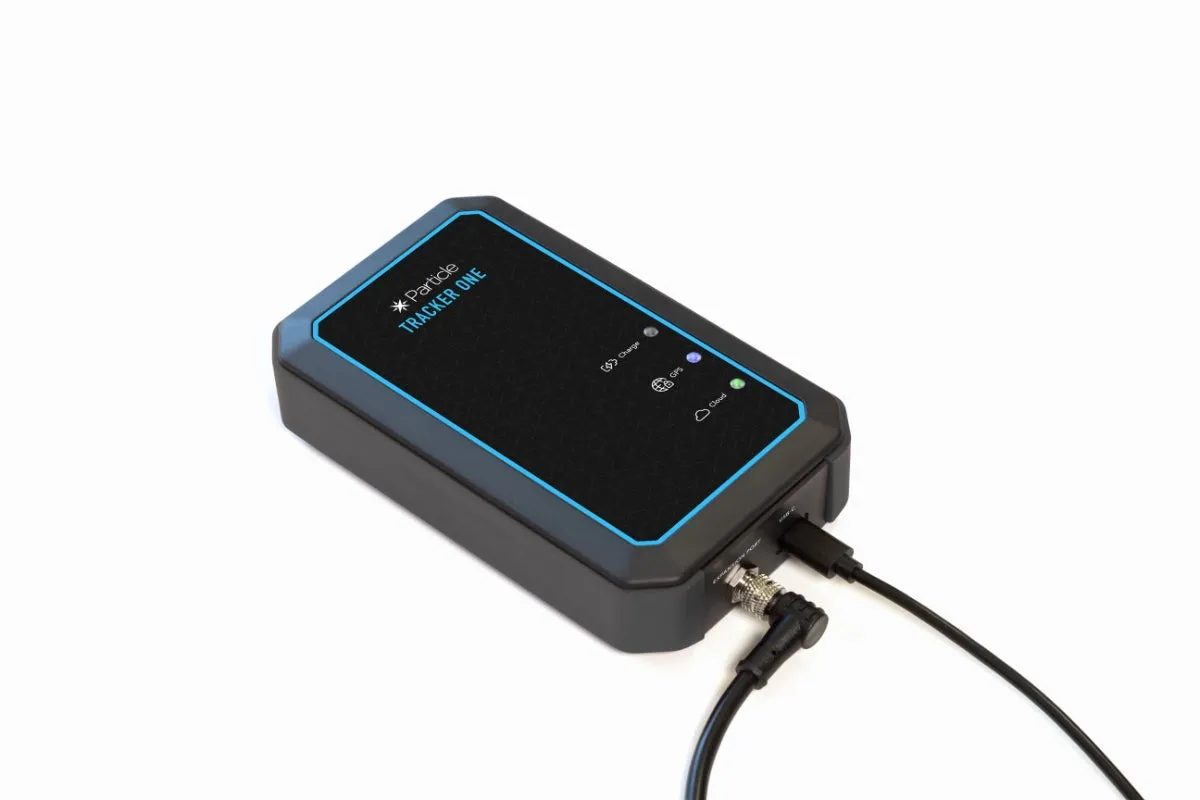

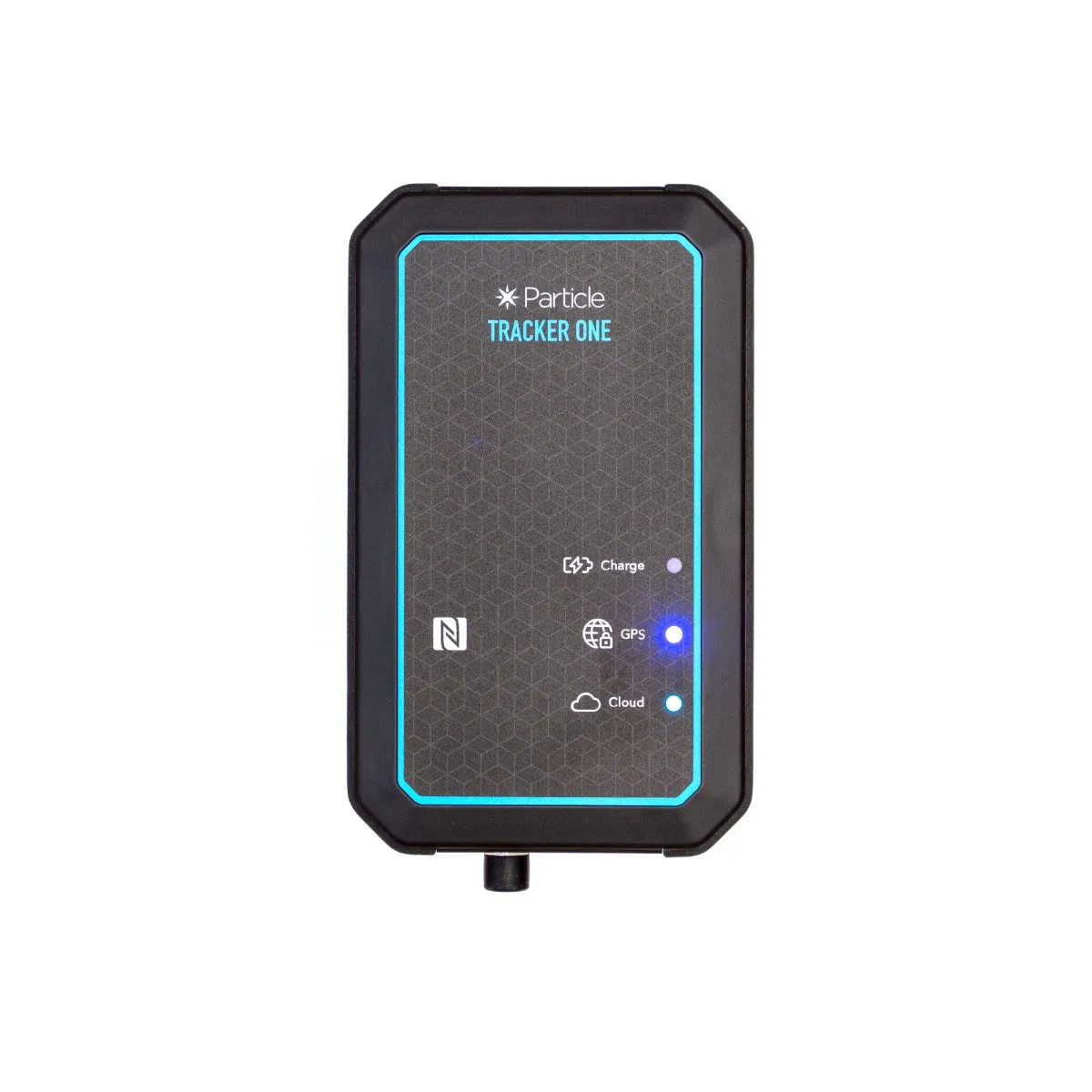

Tracker One: A field-ready reference product

Utilizing Particle Tracking Services and the T SoM as a foundation, Tracker One is a fully-functional and field-ready tracker solution. Tracker One is fully certified, immediately deployable, and requires no additional development.

Tracker One’s hardware design and firmware are open source and can be customized to suit your unique needs or act as a reference design for a fully custom product.

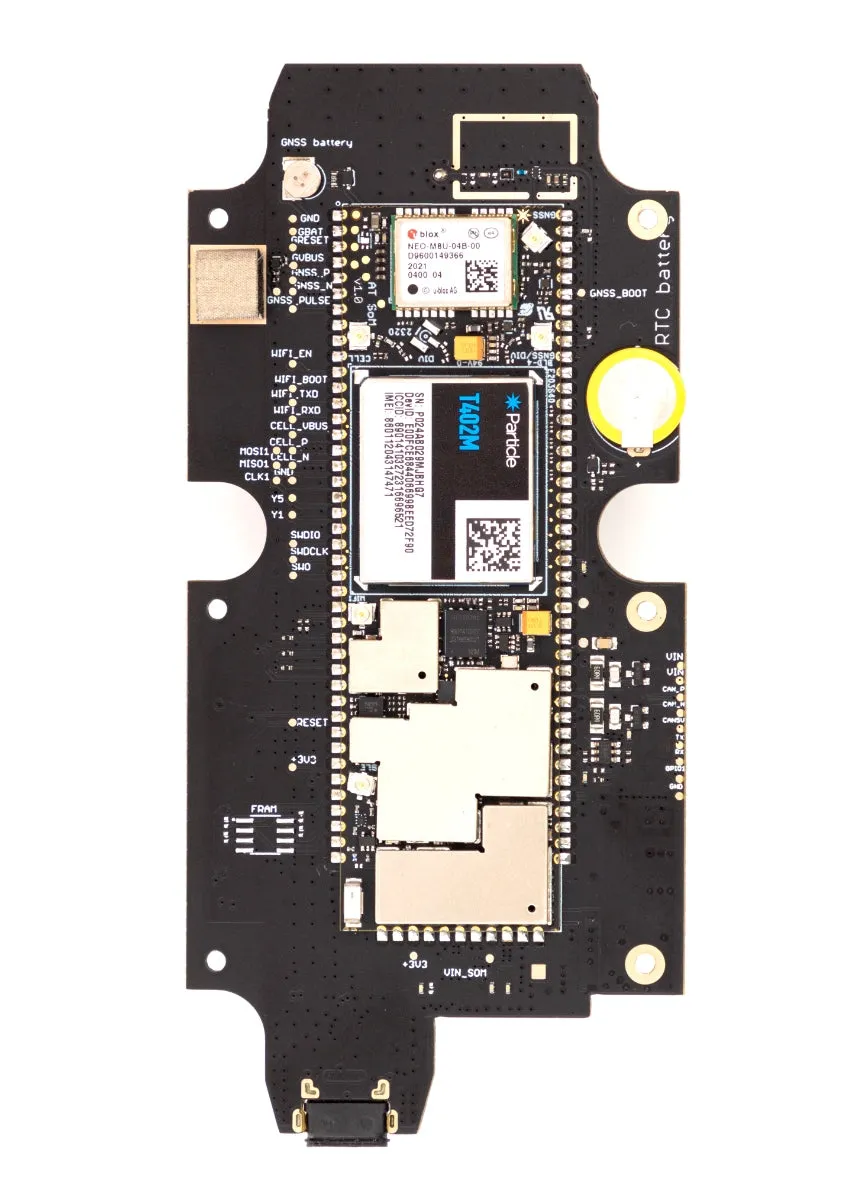

T SoM: The heart of your asset tracking solution

T SoM is a powerful, configurable, and extensible IoT System-on-Module (SoM) that builds on Particle's Tracking Services foundation and provides a powerful MCU, GNSS, and advanced peripherals in a compact form factor. T SoM serves as an accelerated starting point to organizations that require a tailored tracking solution for sophisticated applications as well as a fully-certified foundation for original equipment manufacturers developing commercial products.


What's included?

Tracker One
USB-c cable


Technical Specifications

Complete enclosed, IP67 rated, asset tracker for immediate use

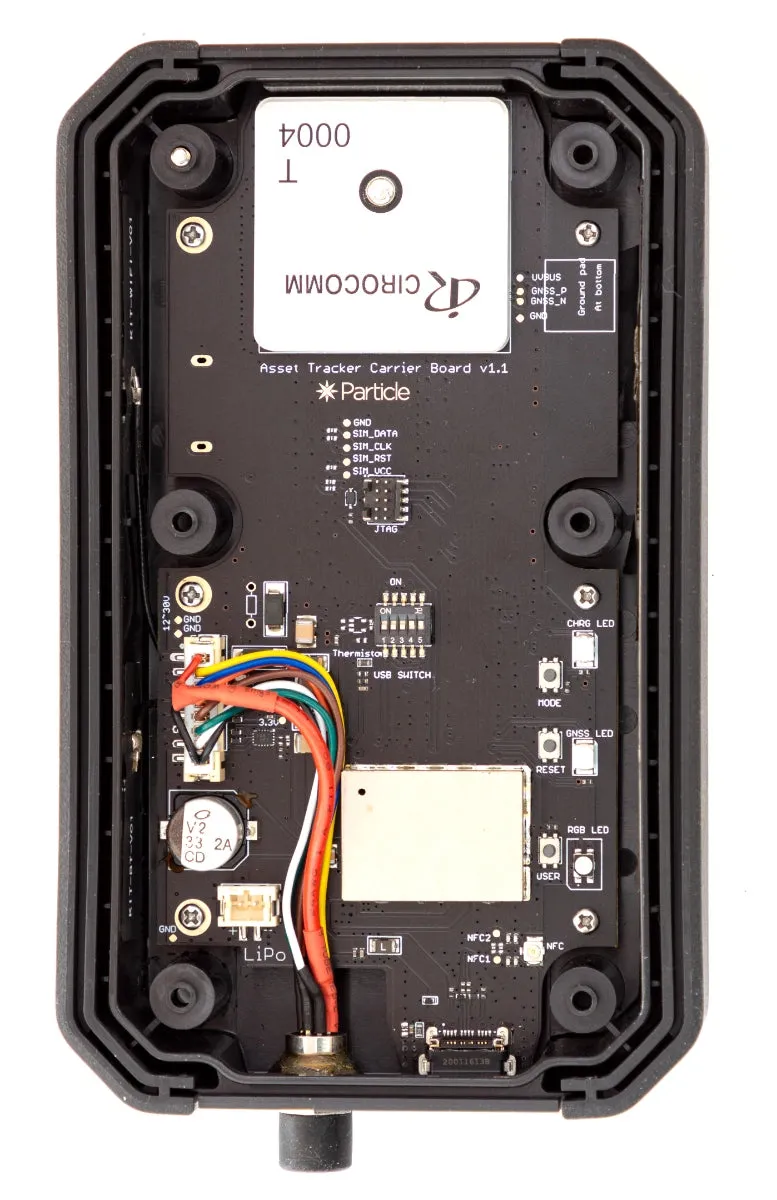

Includes the Asset Tracker SoM mounted on carrier board and installed in an IP67-rated enclosure

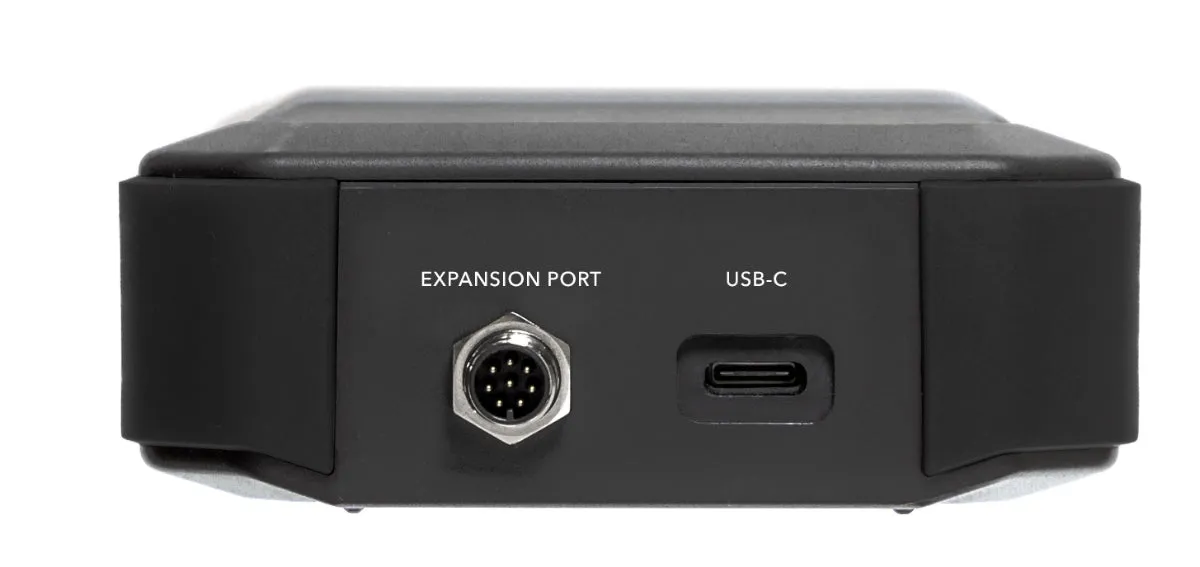

IP67-rated M8 connector includes CAN Bus, UART, GPIO, and power for simple expansion

Flexible power supply accepts 4.5-30V power supply (105V may be used if connecting power direct to the carrier board without using the M8 connector). Also accepts 5V supply via USB-C. Switched LiPo battery connector, charge LED, backup battery for GPS and RTC

High-precision Thermistor: with accuracy to 1%

USB-C: for flashing, debugging and power with higher charging rates than micro-USB

RGB LED: for use as both a user-configurable device as well as Particle status information

Backup Battery: for RTC and GNSS
