Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XR-092-RS |
| Connection Type | Wire Leads |
| Insulation Color | Brown/Blue |
| Insulation Material | Teflon |
| Jacket Color | Red |
| Jacket Material | 310 Stainless Steel |
| Length, Wire | 3.3 ft (1m) |
| Maximum Operating Temperature | 2012 F (1100 C) |
| Minimum Operating Temperature | -40 F (-40 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056070948594 |
| Warranty | 3 Year Warranty |
| Wire Size | 7/0.2 (0.219mm2) |
Overview

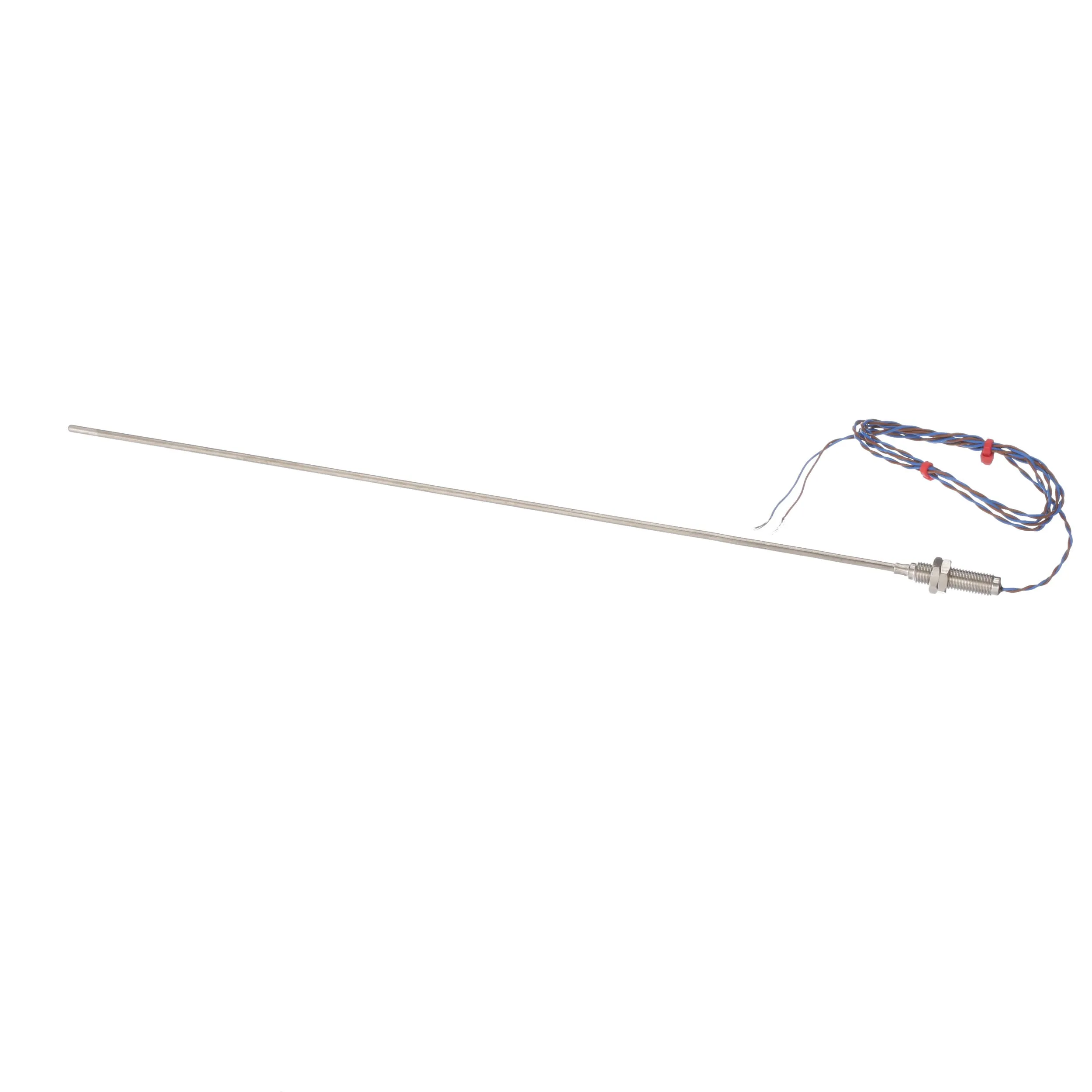

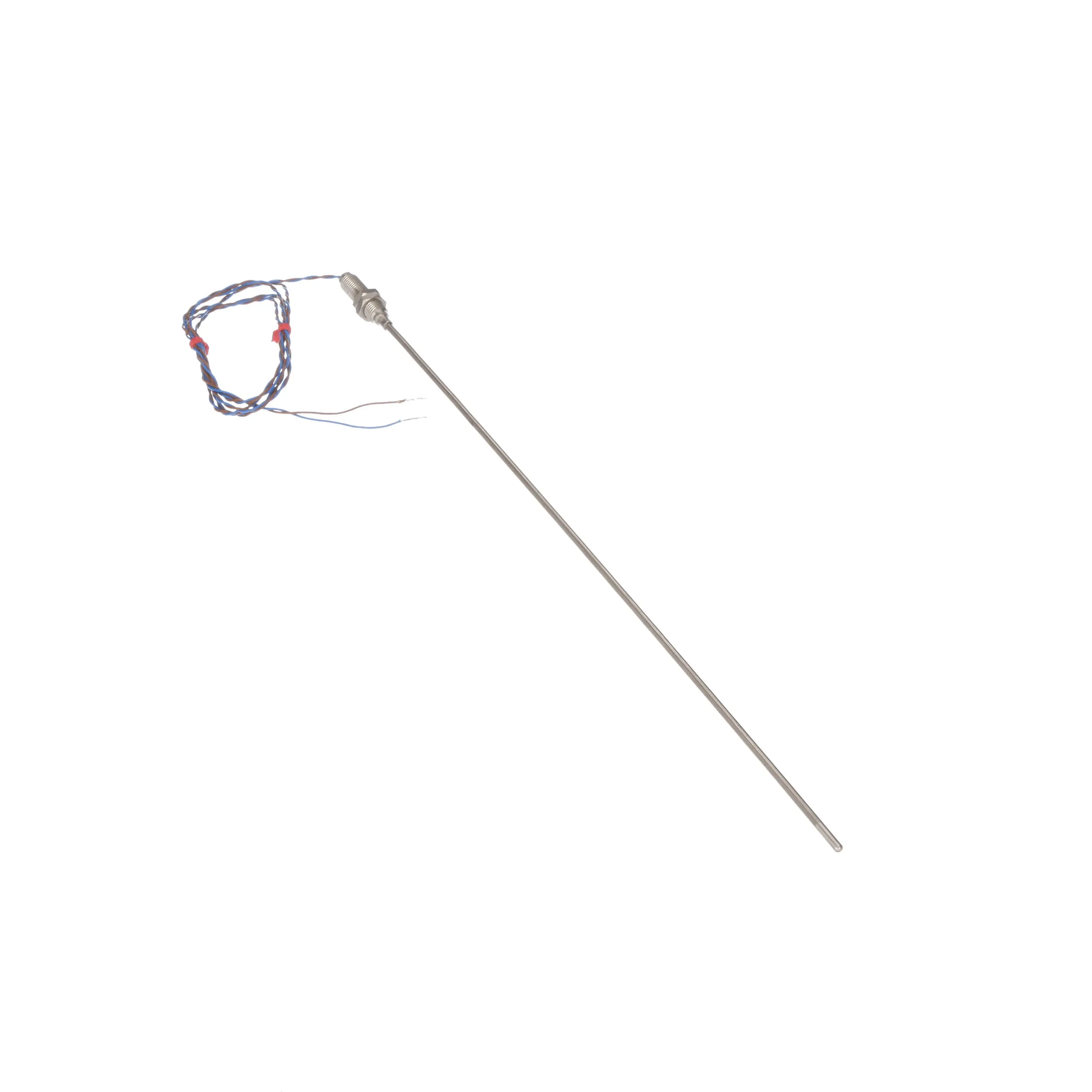

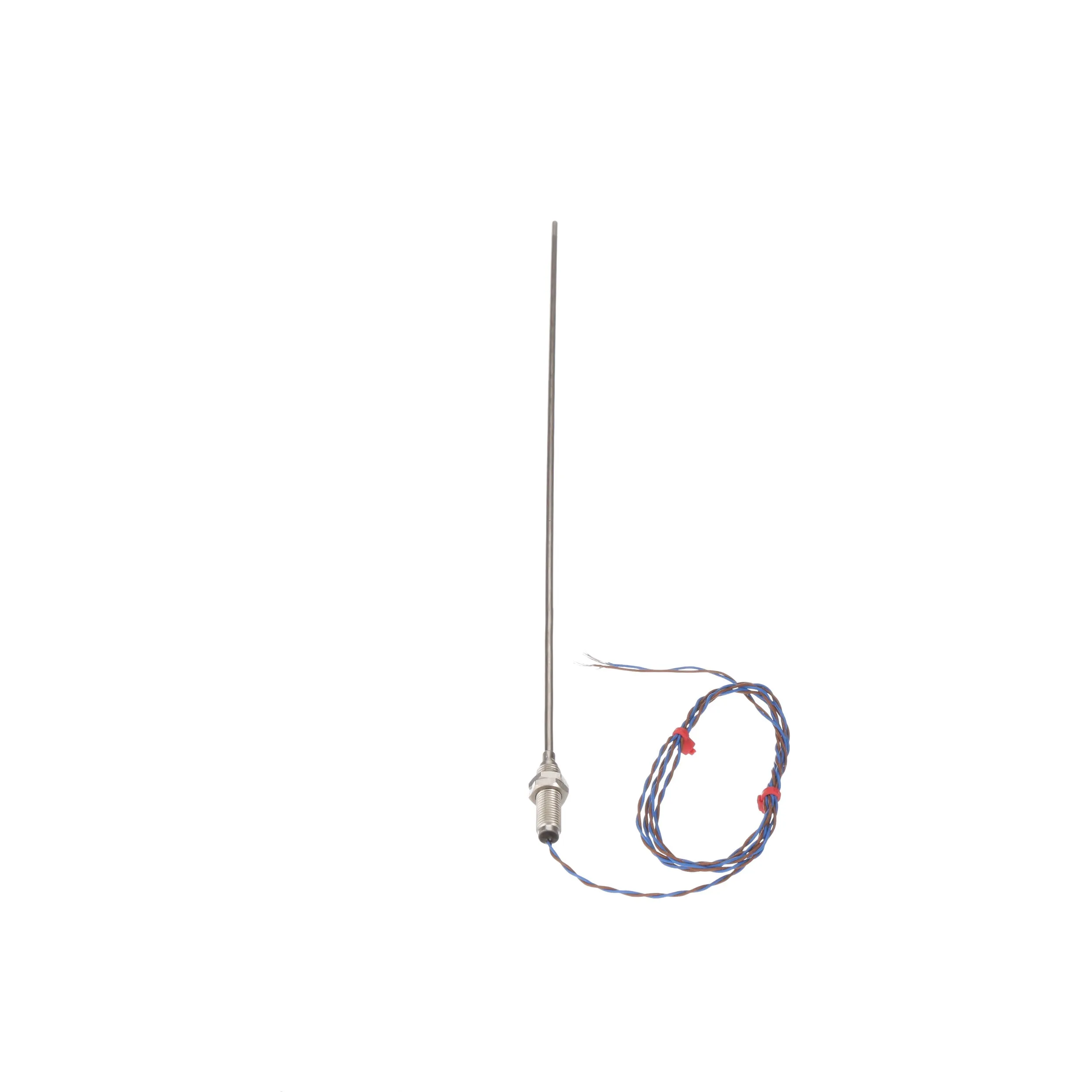

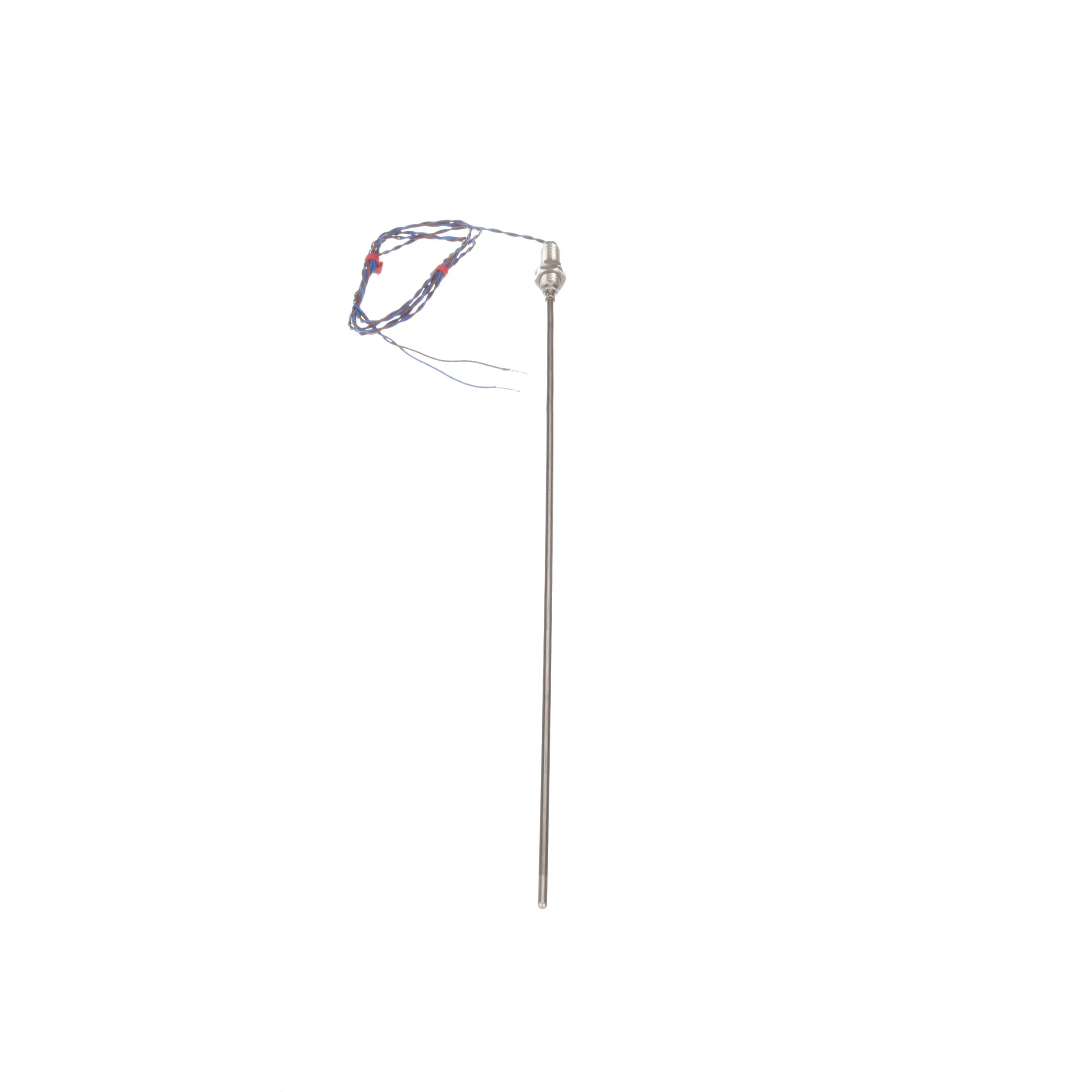

Type K Thermocouple, St. Steel 300mm Probe, Mineral Insulated
1m of PTFE insulated lead with M8 threaded connection to the thermocouple and stainless steel sheath. 316 stainless steel probe, 3mm. Temp. range 0 to 1000°C. Gland available 1/8 BSP, see stock no. 158-610
Approvals:
ABS, DNV, Lloyd's, UL
