Brand: BendPak
Manufacturer's Part Number: 5175304
Part Type: Vehicle Lifts
Product Line: BendPak 10AP Series 2-Post Lifts
Automotive Fittings Part Number: BPI-5175304
Maximum Lift Height (in.): 69.00 in.
Weight Capacity (lbs.): 10,000
Overall Width (in.): 135.00 in.
Overall Height (in.): 145.00 in.
Power Supply: 220 V
Lift Color: Gray powdercoated
Quantity: Sold individually.
Description:

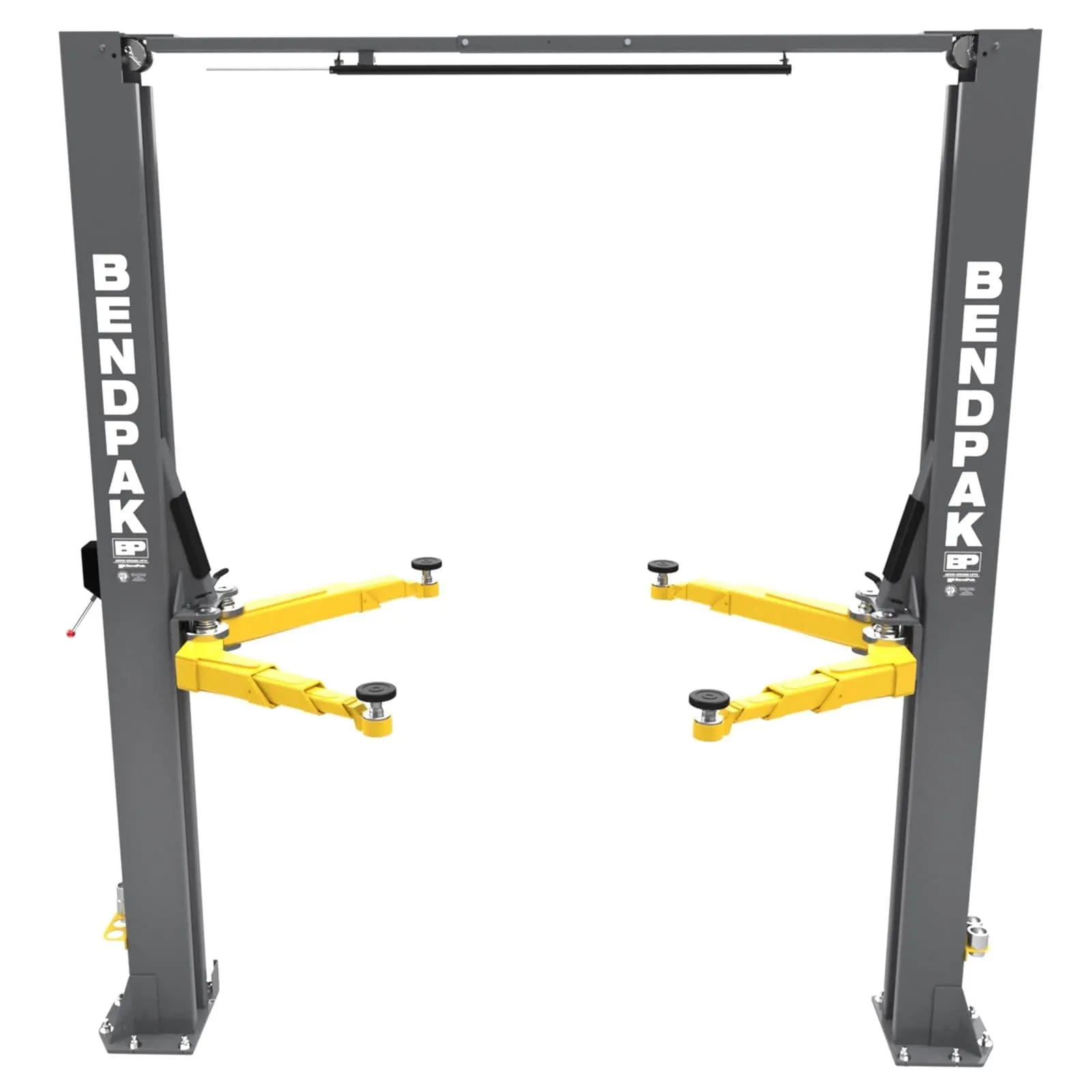

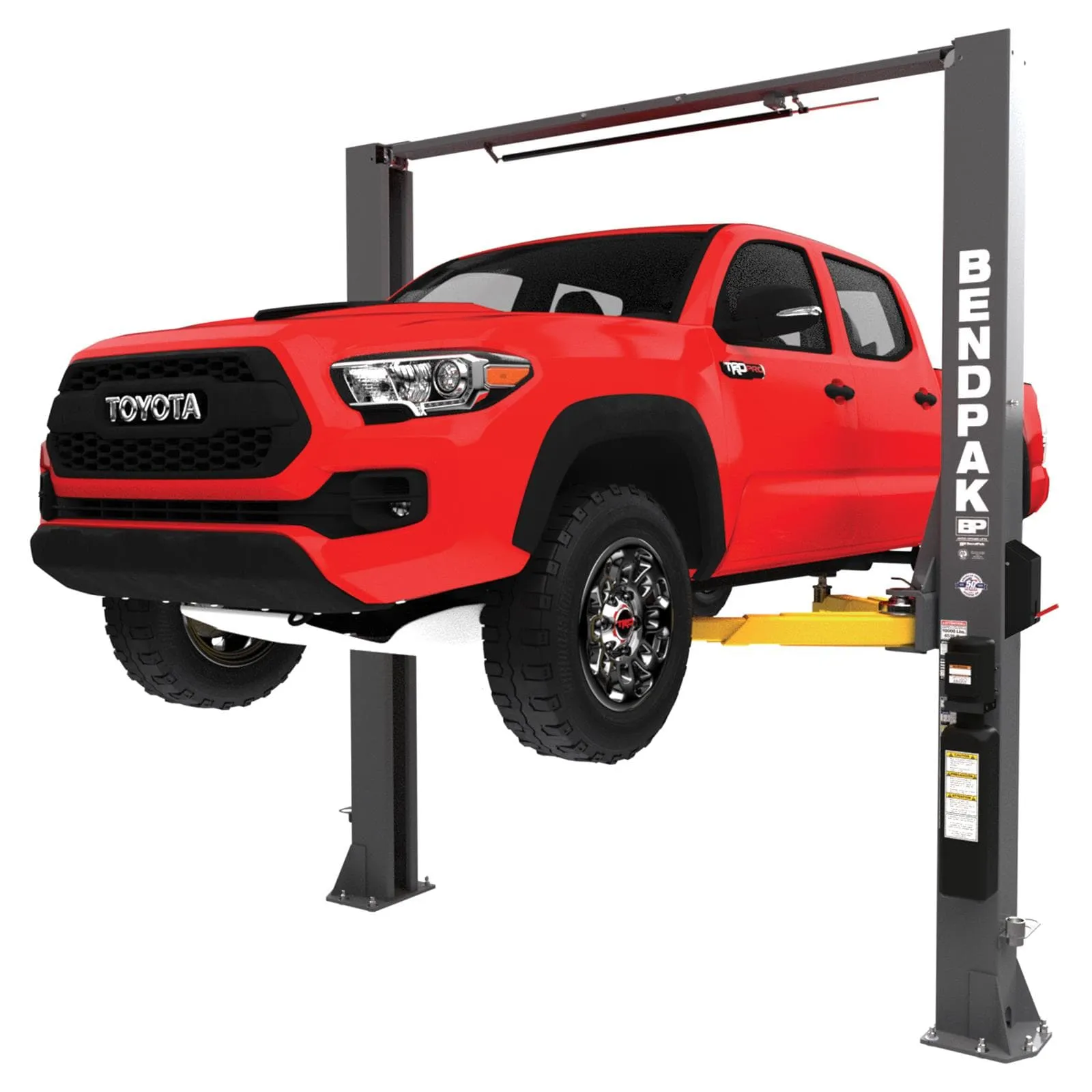

BendPak 10AP Series 2-post lifts offer the convenience of wide or narrow installation wrapped up into one configurable package. This durable, reliable car lift features an expandable top beam and Bi-Metric arms to suit virtually every vehicle lifting requirement—symmetric or asymmetric. The simple, yet highly sophisticated lift design of the BendPak 10AP Series 2-post lift keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.

Auto repair shops working on the latest technology need to be equipped with the latest and most advanced tools to service them properly; they need to evolve alongside the vehicles they service. BendPak's all-new AP series of two-post lifts feature a revolutionary design that factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering. The result is a vehicle lift unlike any other two-post lift on the market, purposefully designed for extreme use, high loads and operator safety and efficiency.

Specifications for the BendPak 10AP Series 2-post lifts:

* Durable powdercoat finish
* Expandable top beam accommodates wide or narrow drive-thru configurations

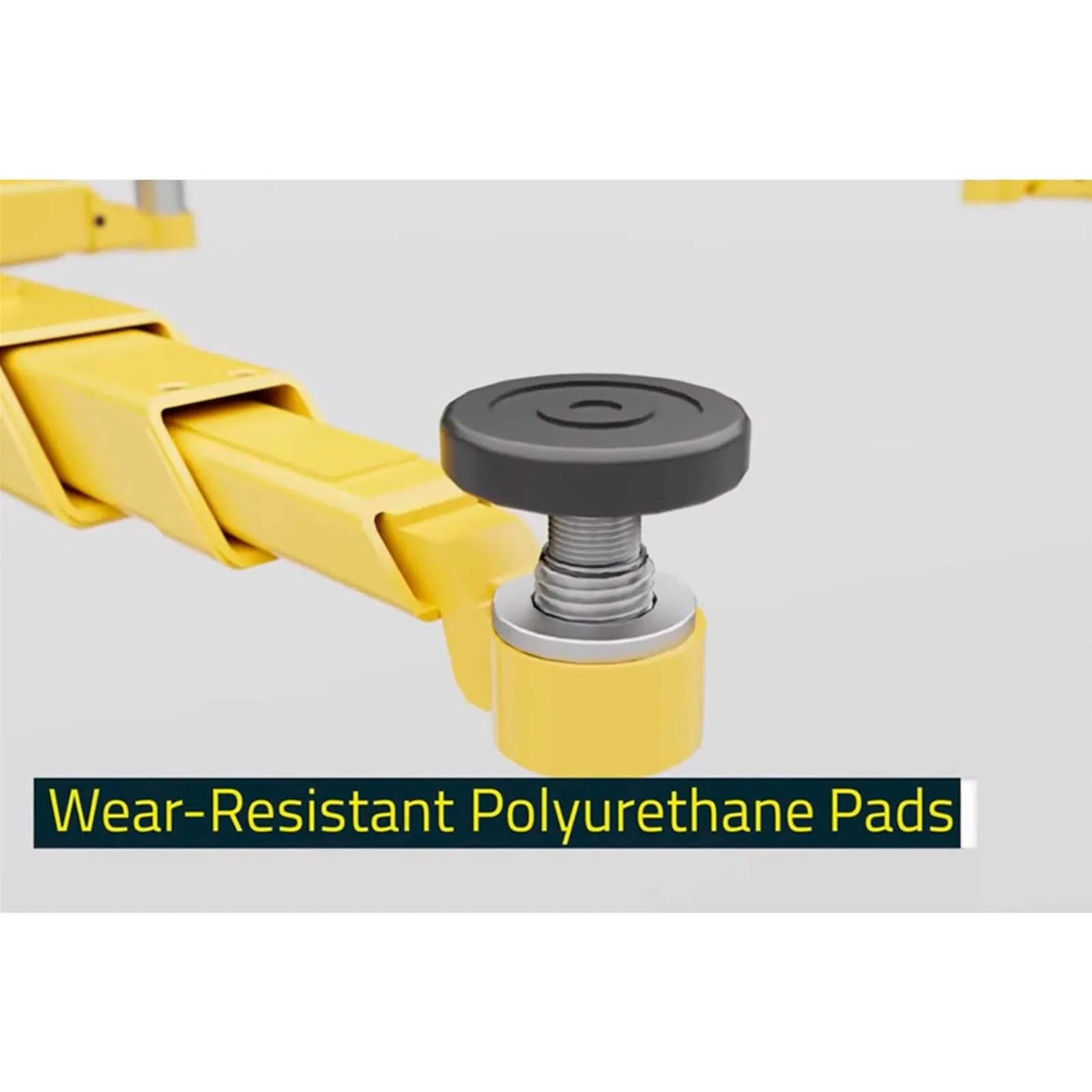

* Double-telescoping screw pads offer increased versatility
* Padded overhead safety shutoff bar

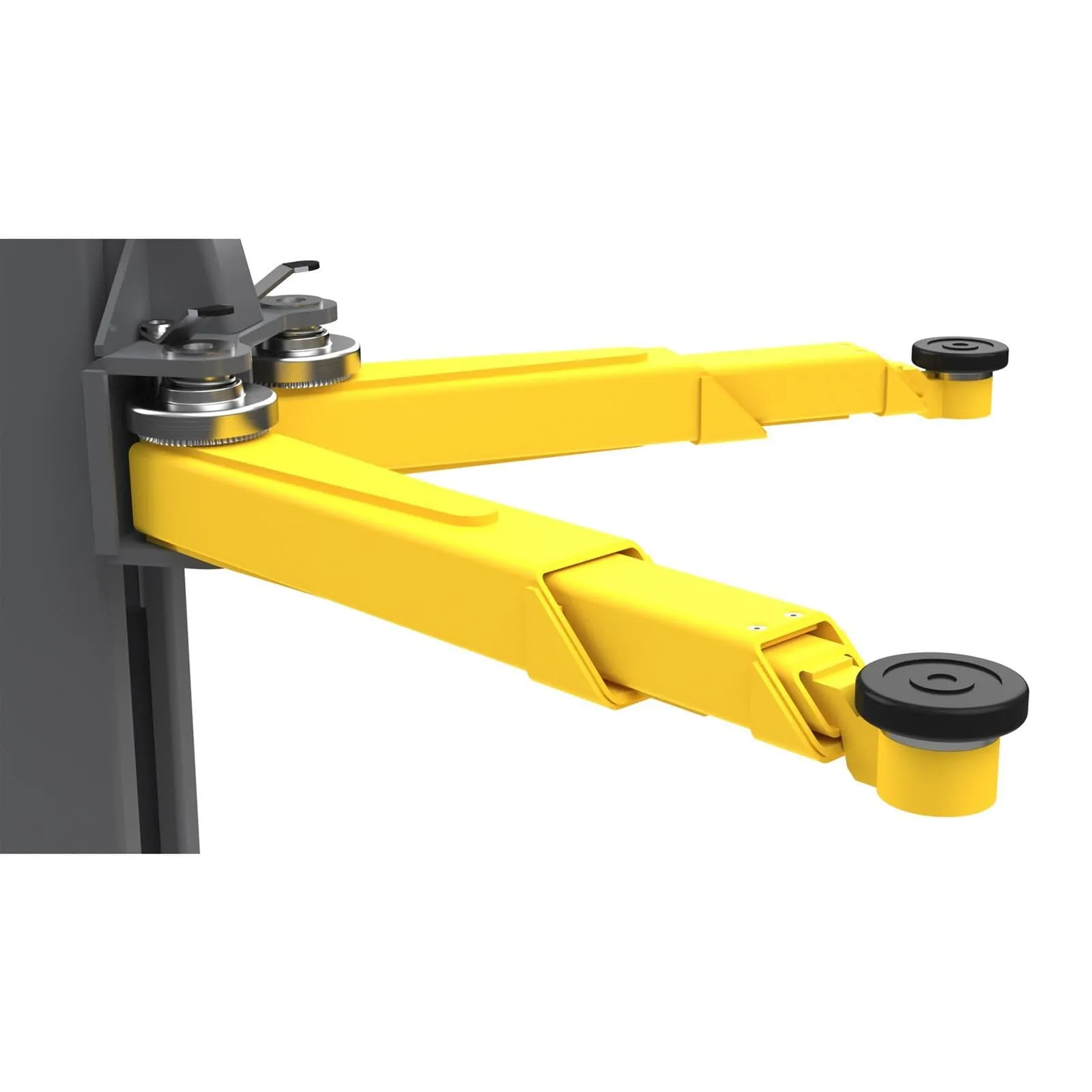

* Exclusive Bi-Metric arm design for more versatile arm positioning
* Single-point safety release
* Drop-end arms provide a lower pad height
* Dual hydraulic direct-drive cylinders
* Oversized 53 in. and 59 in. tall carriages for superior strength and durability
* Electric/hydraulic HVLP power system
* Self-lubricating dura-glide UHMW polyethylene bearing system
* Safety locks in each column spaced every 3 inches

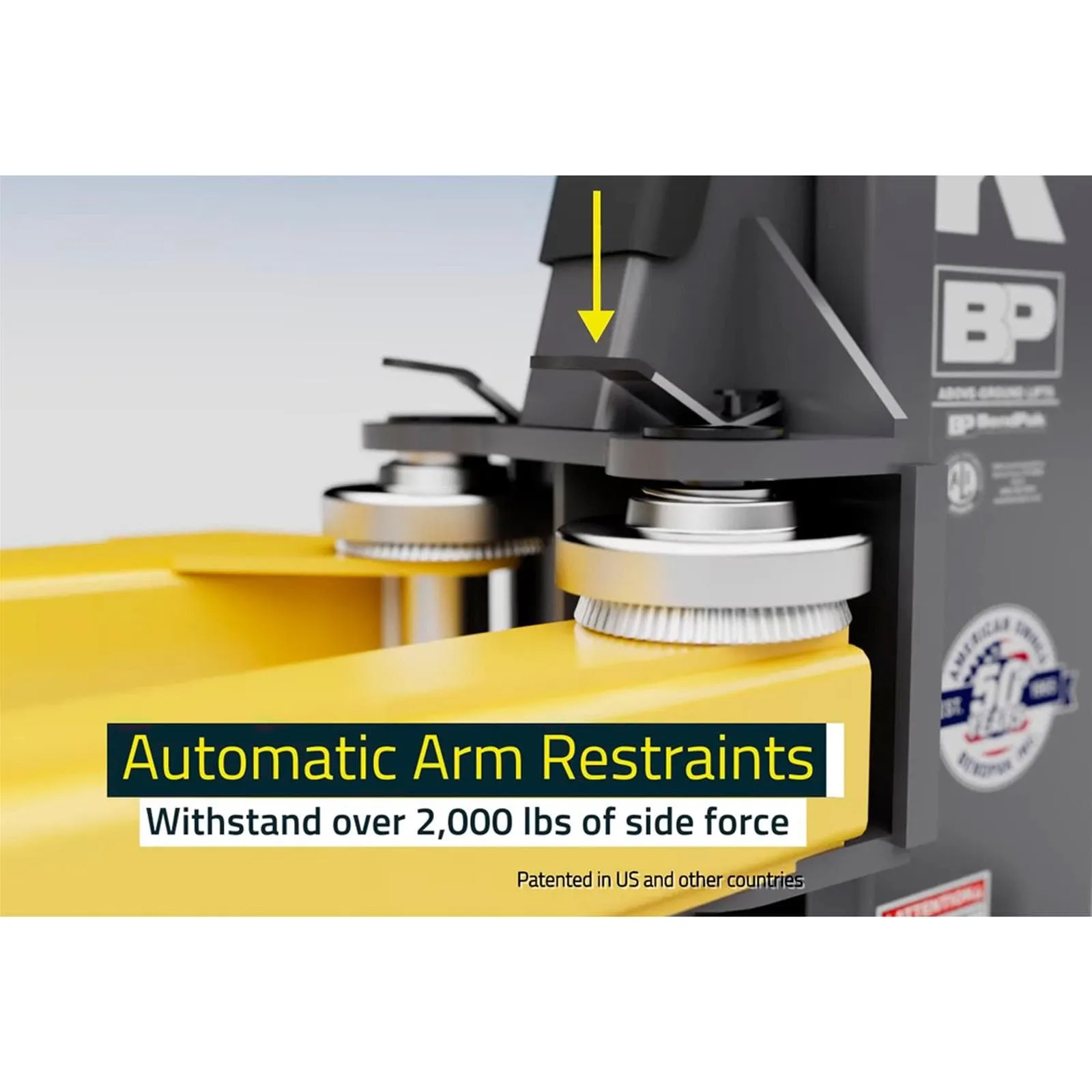

* Automatic arm restraints withstand over 2000 lbs. of side force
* Heavy-duty 1/2 in. aircraft-quality equalizer cables
* Oversized cable sheave diameter reduces cable fatigue

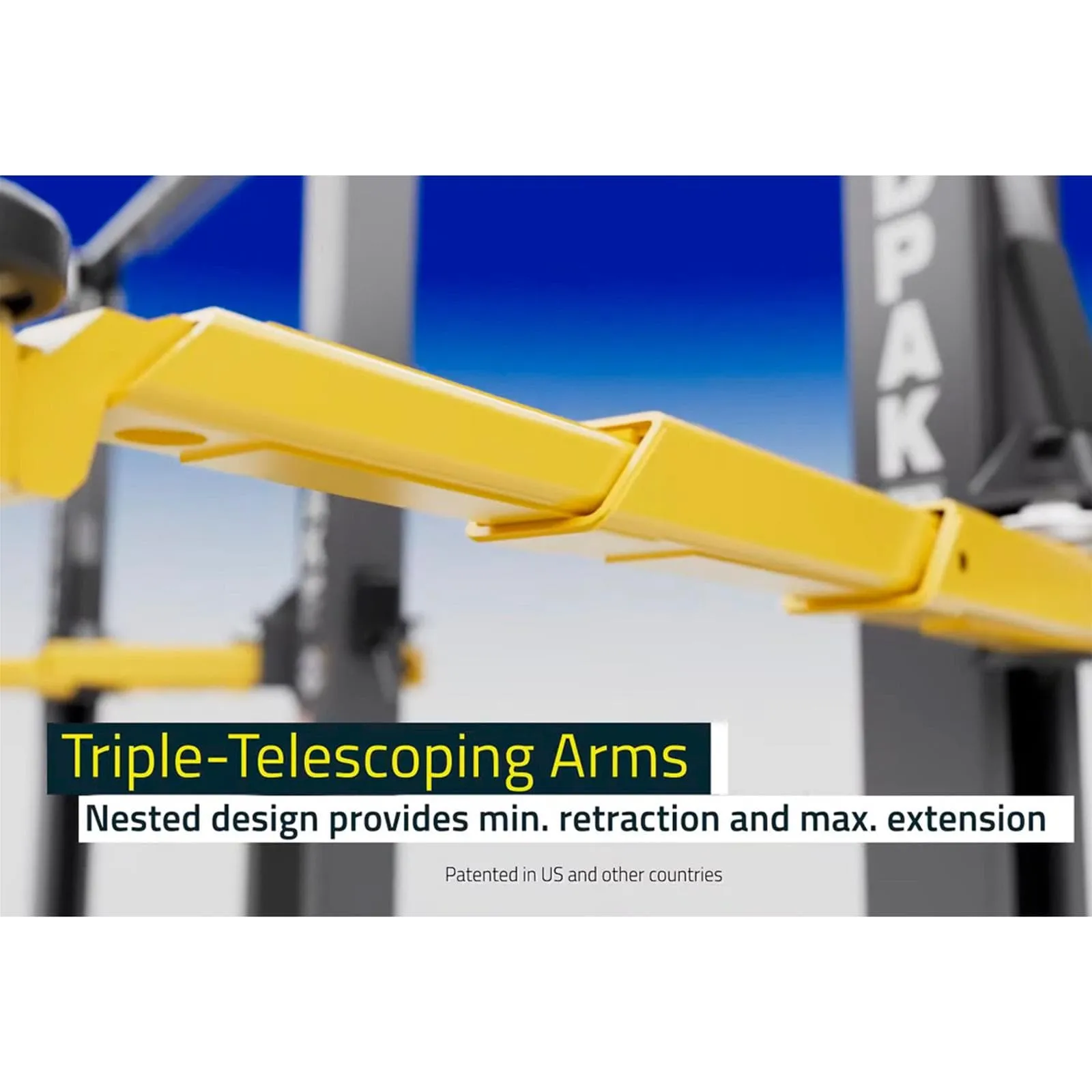

* Four triple-telescoping arms
* ALI certified
